Introduction
A sump pump protects your basement from flooding and water damage. Some jobs are straightforward, like replacing a pump, while others are complex, like adding a second pump with a control panel or excavating a new pit with engineered shoring. Canadian labour rates, permits, and safety rules often make costs higher than U.S. averages.
- Introduction
- Pump and Equipment Costs (Parts Only)
- Labour and Service Costs
- Combined Real-World Ranges
- Excavation Depth and Safety
- Sump Pump Cost Table
- Factors That Affect Cost
- Scenario Examples
- Case Study: Real-World Example
- DIY vs Professional
- Estimates Disclaimer
- What Is Not Included
- Pro Tip
- Warranty Notes
- Eco Angle
- FAQs
- Next Steps
This guide breaks down parts vs labour costs, explains how excavation depth and safety requirements affect price, and shows what dual pump systems with alarms and monitoring really cost.
Pump and Equipment Costs (Parts Only)
- Pedestal sump pump: $150–$300
- Submersible sump pump (⅓–½ HP): $250–$600 (common residential)
- Heavy-duty submersible (¾–1 HP): $600–$1,200
- Commercial-grade submersible (2–5 HP): $2,000–$5,000+ (multi-unit or high-demand sites)
- Battery backup pump: $500–$1,200
- Water-powered backup pump: $400–$800
- Pit liner and cover: $200–$500
- Dual pump control panel: $600–$1,500+ (alternates pumps, switches to backup, built-in alarms)
- High-water alarm: $100–$200 basic, $150–$400 for Wi-Fi or smart alarms
- Integrated monitoring system: $1,000–$2,500 (digital displays, logs, remote notifications)
- Battery cabinet and charger: $200–$600
Labour and Service Costs
- Minimum service charge: from $300 (site visit, basic labour)
- Pump replacement only: $300–$600
- Pump and check valve replacement: $500–$800
- Battery backup install: $500–$1,000+
- Control panel and alarm install: $500–$1,500+ depending on complexity
- Maintenance or cleaning service call: $300–$500
- New sump pit excavation (≤4 ft depth): $3,500–$6,000 (labour, pit, liner, pump)
- Excavation 4–8 ft (shoring required): $6,000–$10,000+
- Deep pit >8 ft (engineered shoring): $10,000–$20,000+
Combined Real-World Ranges
- Basic pump replacement: $700–$1,500 (pump, labour, check valve)
- Backup or dual pump with alarm: $1,500–$3,500
- Heavy-duty or commercial system: $3,000–$8,000+
- New sump pit install ≤4 ft: $3,500–$6,000
- Deep pit 4–8 ft with shoring: $6,000–$10,000+
- Engineered pit >8 ft: $10,000–$20,000+
Excavation Depth and Safety
- 0–4 ft deep: Standard retrofit. No engineered shoring needed.
- 4–8 ft deep: By law, shoring or sloping is required. Adds labour and material costs.
- Over 8 ft deep: Engineer-designed shoring with stamped plans and inspections. Significantly higher complexity and cost.
🔴 Safety Disclaimer
In Canada, any excavation deeper than 4 ft must be shored or sloped by law. Excavations beyond 8 ft require engineer-designed shoring. If workers must enter the pit, confined space entry rules apply:
- Tripod and harness retrieval system
- Gas detection equipment
- Two-person crew minimum for safety watch
- Confined space permits and training
These safety requirements are mandatory and can add $1,000–$3,000+ to a deep sump installation. Homeowners should never attempt confined space or excavation sump work themselves.
Sump Pump Cost Table
| Service Type | Typical Cost Range | Notes |
|---|---|---|
| Pump swap only | $700–$1,500 | Includes pump, labour, new check valve |
| Backup pump (battery or water) | $1,500–$2,500 | Adds protection during outages |
| Dual pump with control panel | $2,000–$4,500 | Includes alarms and automatic switching |
| Heavy-duty pump (¾–1 HP) | $1,500–$3,000 | For higher water volumes |
| Commercial pump (2–5 HP) | $3,000–$8,000+ | Multi-unit or high-demand systems |
| New sump pit ≤4 ft | $3,500–$6,000 | Standard excavation in basement |
| New sump pit 4–8 ft | $6,000–$10,000+ | Requires shoring for safety |
| Deep pit >8 ft | $10,000–$20,000+ | Engineer-designed shoring required |
| Alarm system | +$100–$400 | Basic or smart monitoring |
| Discharge line replacement | +$200–$1,000 | Includes freeze protection upgrades |
💡 Prices reflect Canadian averages across small and large markets.
Factors That Affect Cost
- Pump size and type, larger HP pumps and backups cost more
- Dual pump systems with panels and alarms
- Excavation depth, biggest driver of cost, triggers shoring rules
- Electrical work, GFCI outlet or new circuit may add $300–$800
- Backup systems, highly recommended, add $1,000–$2,000+
- Discharge line condition, frozen, clogged, or collapsed lines increase cost
- Permits, $100–$300, often required for storm sewer connections
- Basement access, tight or finished basements add labour time
- Emergency calls, flood situations often mean after-hours rates
- Regional labour rates, urban centres such as Toronto or Vancouver are higher than rural areas
Scenario Examples
Basic Pump Replacement (from $700)
Plumber replaces submersible pump and check valve.
- Time: 2–3 hours.
Full Pit Install ($3,500–$6,000)
New pit excavated 3 ft in basement slab. Pump, liner, and discharge line installed.
- Time: 1 day.
Deep Retrofit with Shoring ($10,000–$20,000+)
Excavation to 9 ft with engineer-designed shoring. Commercial-grade pump system installed with tripod and confined space safety crew.
- Time: Multiple days.

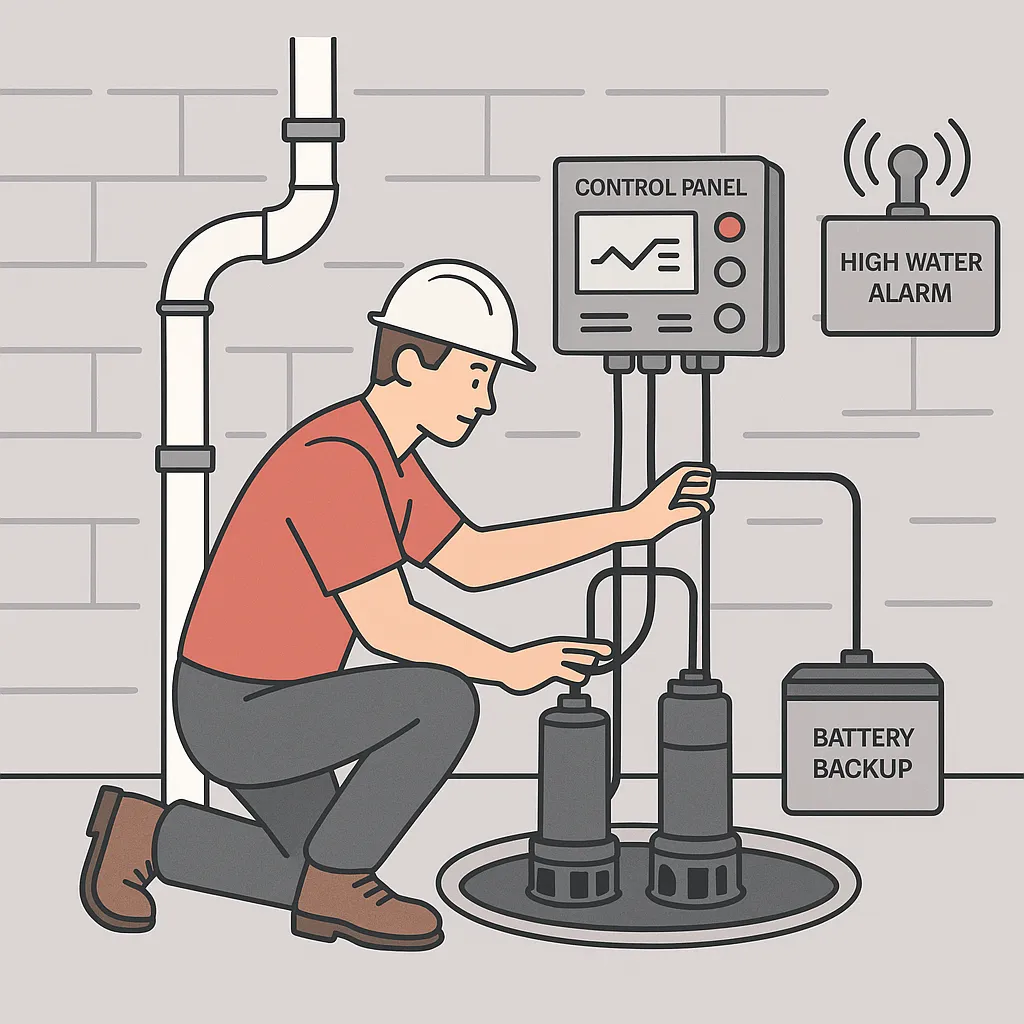

Case Study: Real-World Example
A homeowner in Mississauga installed a sump system after repeated spring flooding. The pit was excavated to 5 ft, requiring shoring. A dual pump system was installed with a control panel, battery backup, and smart alarm.
- Service: New dual sump system with monitoring
- Equipment: Two submersible pumps, check valve, control panel, battery backup, Wi-Fi alarm
- Total cost: $9,400
- Result: Basement stayed dry during the next major storm, system alternates pumps automatically and alerts homeowner by phone if water rises too high
DIY vs Professional
| Option | Cost | When It Works | Risks |
|---|---|---|---|
| DIY pump swap | $250–$600 (pump only) | Very handy homeowners | Risk of leaks, shocks, code violations |
| Professional service | $700–$20,000+ | Most replacements, dual systems, and all excavations | Warranty, permits, safety compliance |
👉 STOP point: If excavation, dual pump wiring, or confined space entry is required, only a licensed professional can do the work safely and legally.
Estimates Disclaimer
💡 Estimates only. Prices exclude after-hours premiums, electrical upgrades, permits, or engineer fees for deep shoring. Minimum service charge is $300 before tax. Actual costs vary by site conditions and location.
What Is Not Included
- Electrical panel upgrades
- Structural waterproofing beyond sump system
- Landscaping repairs if exterior discharge is replaced
- Remediation of prior water damage
Pro Tip
Consider dual pumps with a control panel if your home has a history of flooding. The added backup and monitoring reduce the risk of a total system failure.
Warranty Notes
- Most sump pumps: 1–3 year manufacturer warranty
- Battery backups: 1–2 years
- Control panels and alarms: typically 1–3 years
- Professional installation may extend warranty coverage
Eco Angle
A reliable sump system prevents flooding, mold, and costly insurance claims. Modern control panels and smart alarms also reduce waste by notifying homeowners early before water damage occurs.
FAQs
How long do sump pumps last?
5–10 years for most submersible units.
Do I need a permit to install a sump pump?
Often yes, especially if tied to storm sewers.
What is the biggest cost driver?
Excavation depth and safety compliance, along with dual pump controls in some systems.
Can I replace a sump pump myself?
You can replace a pump, but not excavate or rewire. Anything requiring shoring, confined space entry, or control panel installation must be done by a professional.
Why are Canadian sump pump costs higher than U.S. averages?
Higher labour rates, permit requirements, and strict safety regulations.
Next Steps
A sump pump is your basement’s first line of defense against flooding. Whether you need a basic pump replacement, a dual pump system with alarms, or a new pit excavation, a licensed plumber ensures safe, code-compliant work.
